Description

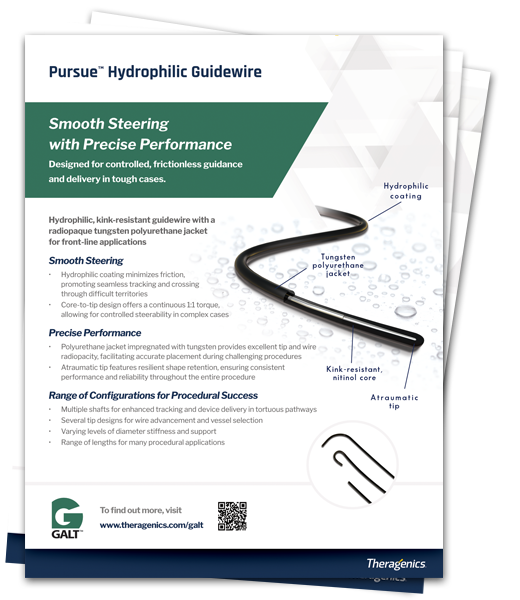

Smooth Steering
- Hydrophilic coating minimizes friction, promoting seamless tracking and crossing through difficult territories
- Core-to-tip design offers a continuous 1:1 torque, allowing for controlled steerability in complex cases
Precise Performance
- Polyurethane jacket impregnated with tungsten provides excellent tip and wire radiopacity, facilitating accurate placement during challenging procedures
- Atraumatic tip features resilient shape retention, ensuring consistent performance and reliability throughout the entire procedure
Range of Configurations for Procedural Success
- Multiple shafts for enhanced tracking and device delivery in tortuous pathways
- Several tip designs for wire advancement and vessel selection
- Varying levels of diameter stiffness and support
- Range of lengths for many procedural applications

Testimonials
The floppy tip of the wire helps guide through narrowings."
Marriah Russell RT(R)
Wellstar Cobb Hospital, VII really like the TORX wire because of the kink-resistant nitinol and torqueability. The wire is able to make turns and keep the stiffness that we need for different procedures."
Sean Wiley, RRA/RPA
UF Health Shands Hospital IR, Mobile Vascular SolutionsOrdering Information
Standard Shaft - Straight Tip
Catalog No. | Diameter | Length | Wire Type | Tip Shape | Units /Box |
---|---|---|---|---|---|
SGW-531-00 | 0.035” | 150cm | STD | Straight | 10 |
SGW-531-02 | 0.035” | 180cm | STD | Straight | 10 |
SGW-531-04 | 0.035” | 260cm | STD | Straight | 10 |
Standard Shaft - Angled Tip
Catalog No. | Diameter | Length | Wire Type | Tip Shape | Units /Box |
---|---|---|---|---|---|
SGW-531-01 | 0.035” | 150cm | STD | Angled | 10 |
SGW-531-03 | 0.035” | 180cm | STD | Angled | 10 |
SGW-531-05 | 0.035” | 260cm | STD | Angled | 10 |
SGW-531-15 | 0.038” | 150cm | STD | Angled | 10 |
SGW-531-16 | 0.038” | 180cm | STD | Angled | 10 |
Standard Shaft - J Tip
Catalog No. | Diameter | Length | Wire Type | Tip Shape | Units /Box |
---|---|---|---|---|---|
SGW-531-12 | 0.035” | 150cm | STD | J-Tip 3mm | 10 |
SGW-531-13 | 0.035” | 180cm | STD | J-Tip 1.5mm | 10 |
SGW-531-14 | 0.035” | 260cm | STD | J-Tip 1.5mm | 10 |
Stiff Shaft - Straight Tip
Catalog No. | Diameter | Length | Wire Type | Tip Shape | Units /Box |
---|---|---|---|---|---|
SGW-531-09 | 0.035” | 150cm | STF | Straight | 10 |
SGW-531-10 | 0.035” | 180cm | STF | Straight | 10 |
SGW-531-11 | 0.035” | 260cm | STF | Straight | 10 |
Stiff Shaft - Angled Tip
Catalog No. | Diameter | Length | Wire Type | Tip Shape | Units /Box |
---|---|---|---|---|---|
SGW-531-06 | 0.035” | 150cm | STF | Angled | 10 |
SGW-531-07 | 0.035” | 180cm | STF | Angled | 10 |
SGW-531-08 | 0.035” | 260cm | STF | Angled | 10 |
